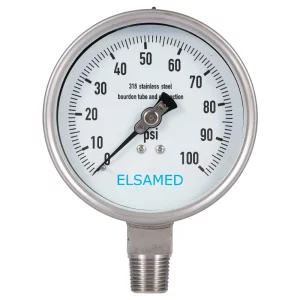

4″ Glycerin Filled Pressure Gauge

The ELSAMED Glycerin Filled Pressure Gauge LFP4-SSS-Gl is a compact industrial gauge for applications where the process fluid requires stainless steel wetted components. This gauge features a stainless steel case and can be filled with glycerine to prolong the life of the internal mechanism when exposed to vibration. It is calibrated to 1% full scale accuracy and is suitable for many industrial and processing applications.

CAUTION: A coil syphon must be installed on the connection when used on steam applications.

Specifications
Downloads
CASE:
304 Stainless steel
LENS:
Tempered glass. Safety glass is optional
DIAL:
Aluminum, white finished with black markings
POINTER:
Aluminum, black, adjustable
TUBE&SOCKET:
316 Stainless steel
CONNECTION:
1/2" NPT or 1/4" NPT
ACCURACY:
±1% Full Scale (ASME B40.100 Grade 1A)
PROCESS TEMPERATURE:
-40 to 250°F (-40 to 120°C)
AMBIENT TEMPERATURE:
-40 to 140°F (-40 to 60°C)
