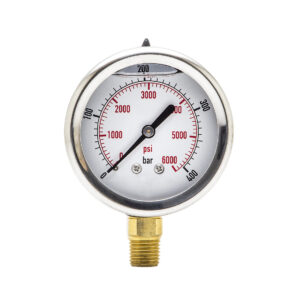

6″ Liquid Filled Industrial Gauge
The ELSAMED LFSS60L-S Liquid Filled Industrial Gauge is a compact industrial gauge for applications where the process fluid requires stainless steel wet components. This gauge features a stainless steel case and can be filled with glycerine to prolong the life of the internal mechanism when exposed to vibration. It is calibrated to 1% full scale accuracy and is suitable for many industrial and processing applications.
CAUTION: A coil syphon must be installed on the connection when used on steam applications
CASE:
304 Stainless steel
RING:
Stainless steel, internal rotation
LENS:
Reinforced glass or Safety Glass
DIAL:
Aluminum, white finished with black markings
POINTER:
Aluminum, black, micro-adjustable
MOVEMENT:
Stainless steel
TUBE&SOCKET:
316 Stainless steel
CONNECTION:
1/2"NPT
ACCURACY:
±1% Full Scale (ASME B40.100 Grade 1A)
PROCESS TEMPERATURE:
-40 to 140°F (-40 to 60°C)
AMBIENT TEMPERATURE:
0 to 140°F (-18 to 60°C)
