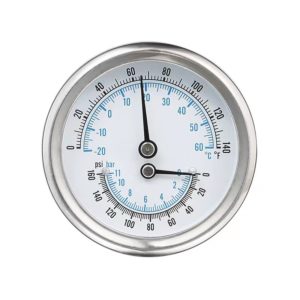

4″ Pressure/Temperature Industrial Gauge

The  4″ Pressure/Temperature Industrial Gauge dual indicating pressure/temperature gauges, or commonly referred to as ”tridicators”, combine the value of an individual pressure gauge and thermometer in one instrument. They are the ideal choice for boilers and other hot water applications where space limitations and installation costs are a consideration. These instruments contain both a bourdon tube assembly to indicate pressure, and a bimetal coil assembly to indicate temperature in both Fahrenheit and Celsius.
WARNING: Not suitable for steam service.

Specifications
Downloads
CASE:
Stainless steel
RING:
Stainless steel
LENS:
Polycarbonate or Tempered glass
DIAL:
Aluminum
POINTER:
Aluminum, black non-adjustable
MOVEMENT:
Brass
TUBE&SOCKET:
316 Stainless steel
CONNECTION:
1/2”NPT or 1/4"NPT
STEM:
Stainless steel
ACCURACY:
±1.5%
Temperature scale:
±One scale division
AMBIENT TEMPERATURE:
-40 to 250°F (-40 to 120°C)
