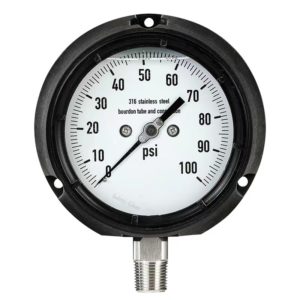

4.5″ Process Gauge
ELSAMED Model P45L 4.5″ Process Gauge is furnished in a solid-front, turret-style case, molded in hi-impact polypropylene, which is ideally suited for corrosive and difficult environments. The solid-front construction provides added protection for safety considerations and the lens is sealed for weather-proof operation. This gauge can be provided dry or liquid filled.
CAUTION: A coil syphon must be installed on the connection when used on steam applications.
CASE:
Fiberglass-reinforced black polypropylene
RING:
Fiberglass-reinforced black polypropylene
LENS:
Safety Glass Lens
DIAL:
Aluminum, white finished with black markings
POINTER:
Aluminum, black, micro-adjustable
MOVEMENT:
Stainless steel, rotary type
TUBE&SOCKET:
316 Stainless steel
CONNECTION:
1/2”NPT bottom outlet, 1/4"NPT optional
ACCURACY:
±0.5% Full Scale (ASME B40.100 Grade 2A)
PROCESS TEMPERATURE:
-40 to 250°F (-40 to 120°C)
AMBIENT TEMPERATURE:
-40 to 140°F (-40 to 60°C)
