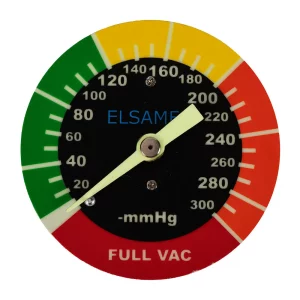

Metallic Diaphragm Type Pressure Gauge

The low-pressure diaphragm gauge offers the pinnacle in both performance and accuracy for pressure and vacuum applications up to and including 10 psi. Such uses include a gas-draft indication, airflow & filtration, leak detection, etc. The D2567/D2567L is constructed from a single beryllium-copper diaphragm affixed to a precision machined brass plate. This advanced design, coupled with a high-precision, milled-teeth brass movement, provides the user with a low-pressure instrument that is without equal.


Description

General Specification

CASE

Brightly-finished 300 series stainless steel

LENS

Polycarbonate, threaded

DIAL

Aluminum, white finished with black markings

POINTER

 black non-adjustable

MOVEMENT

Brass with precision-milled teeth

DIAPHRAGM

Beryllium copper

SOCKET

Brass

RESTRICTOR

0.013'' restrictor

ACCURACY

±1.5% Full Scale (exceeds ASME B40.100 Grade B)

PROCESS TEMPERATURE

-40 to 160° F (-40 to 70° C)

AMBIENT TEMPERATURE

-40 to 140° F (-40 to 60° C)
